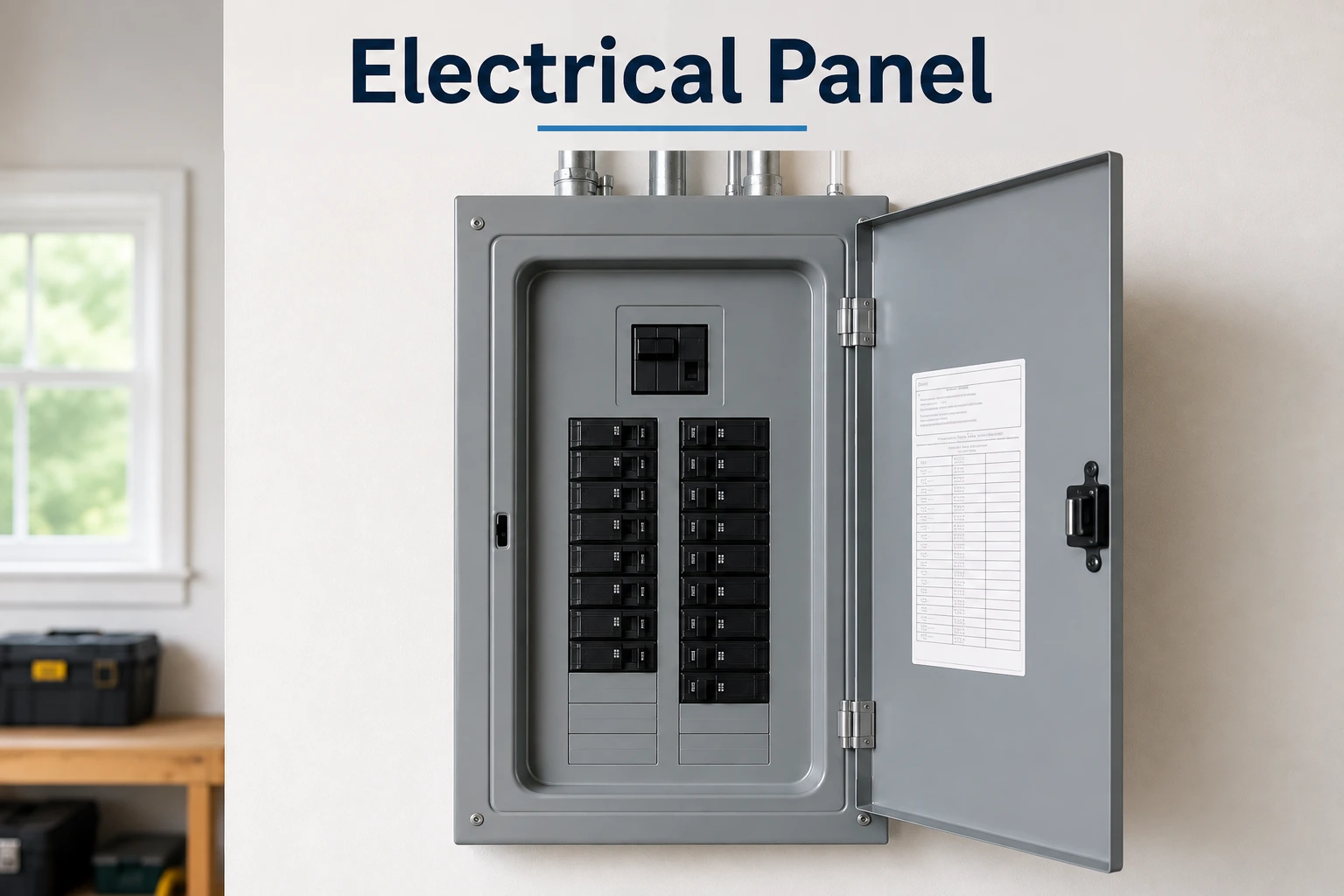

An electrical panel is the metal box that receives power from the utility line and splits it into individual circuits for every room, outlet, and appliance in a house. Each circuit runs through its own breaker, which shuts off automatically if the current draw gets too high, protecting the wiring from overheating. Most homes built after the 1960s use breaker panels rated between 100 and 200 amps, though older properties may still run on 60-amp service or fuse boxes. This guide covers panel types, sizing, costs, warning signs, and safety basics.
What Is an Electrical Panel?
An electrical panel is the metal box that splits incoming power from the utility meter into separate circuits for a home’s lights, outlets, and appliances. It has a main breaker for total power control and individual breakers for each circuit. It belongs to the homeowner, not the utility. It’s usually a gray box in a basement, garage, or utility closet, with a hinged door over the breakers. Behind that door is a cover plate that shields live wiring, only a licensed electrician should open this part.
The main breaker also shows your home’s amperage, typically 60 to 400 amps, with most codes now requiring at least 100. This number affects insurance too, panels under 100 amps or old fuse boxes can raise your premium or limit coverage.
How Does an Electrical Panel Work?
An electrical panel works by receiving power at one point and splitting it into multiple protected paths. Electricity enters through the main breaker, passes through metal bus bars inside the panel, and branches out through individual breakers into the wiring that feeds each circuit. If any circuit draws more current than its breaker is rated for, that breaker trips and cuts power to that circuit only, leaving the rest of the house unaffected.
How Does a Panel Control and Distribute Electricity?
Each breaker acts as a switch and a safety device at once. Under normal use, you can flip it off manually to cut power to that circuit for repairs. Under an overload of too many devices drawing current on one circuit the breaker trips on its own, moving to a middle position between on and off. This is a deliberate design: cutting power stops the wire from overheating before it becomes a fire risk. Resetting it is as simple as flipping the switch fully off, then back on.
The Path of Electricity Utility to Outlet
Power starts at a plant, moves through high-voltage transmission lines, and gets stepped down at substation and pole-mounted transformers before reaching your home’s electrical meter. From the meter, it enters the panel through two heavy service wires connected to the main breaker. The main breaker feeds the bus bars, which distribute power to branch breakers, and each branch breaker sends power through wiring to a specific set of outlets, switches, or a dedicated appliance.
Key Terms: Voltage, Current, Amperage, Watts
| Term | Definition | Unit |
| Voltage | The force pushing electricity through a wire | Volts (V) |
| Current | The flow rate of electrons through a wire | Amperes (A) |
| Amperage | Another word for current, used to describe circuit or panel capacity | Amps (A) |
| Power | Voltage multiplied by current | Watts (W) |
| Energy | Power used over time | Kilowatt-hours (kWh) |
A panel’s capacity is rated in amps. Appliances are rated in watts. Utility bills are calculated in kilowatt-hours. Knowing how these connect makes it easier to understand why a panel upgrade is sometimes necessary. More appliances and higher-wattage devices mean more current draw, which can exceed what an older panel was built to handle.
Main Breaker vs. Branch Breakers
| Main Breaker | Branch Breakers | |
| Location | Top of the panel | Two rows below the main breaker |
| Controls | Power to the entire panel | One specific circuit or appliance |
| Typical rating | 100–400 amps | 15–50 amps |
| When it trips | Total load across the house exceeds panel capacity | That specific circuit is overloaded or shorted |
| Voltage | Feeds both 120V and 240V circuits | Single-pole (120V) or double-pole (240V) |
Parts of an Electrical Panel
An electrical panel is made up of several components working together to bring power in safely and send it out through protected circuits.
Enclosure: The metal box that houses everything. It has an outer door and an inner cover plate, and it’s designed to keep out dust, moisture, and accidental contact with live wiring.
Main Breaker: The largest switch in the panel, usually at the top. It controls power to the entire house and automatically trips if the total load across all circuits exceeds the panel’s rated capacity.
Bus Bar: Metal strips inside the panel that carry current from the main breaker to each branch breaker. Every breaker snaps onto the bus bar to draw power from it.
Single-Pole Breakers: Standard breakers rated at 15 or 20 amps that supply 120 volts to lighting circuits and regular outlets.
Double-Pole Breakers: Larger breakers that combine two single slots to deliver 240 volts, used for high-draw appliances like electric ranges, dryers, water heaters, and air conditioners.
AFCI (Arc Fault Circuit Interrupter): A breaker that detects dangerous arcing — small electrical discharges that can start a fire inside a wall- and cuts power before it turns into a hazard. Required in many living areas under current code.
GFCI (Ground Fault Circuit Interrupter): A device that shuts off power the instant it detects current leaking to ground, such as when an appliance contacts water. Common in kitchens, bathrooms, and outdoor outlets.
Neutral/Ground Bar: A metal bar where neutral and ground wires from each circuit terminate. It provides a safe return path for current and a route for excess electricity during a fault.
Empty Slots: Unused spaces on the bus bar reserved for future breakers. Their presence indicates room to add circuits; a panel with no empty slots needs a subpanel or breaker upgrade to expand.
AFCI vs. GFCI: What’s the Difference?
AFCI and GFCI breakers are often confused because both are safety devices that cut power automatically, but they protect against two different hazards. An AFCI detects arcing faults that can start electrical fires inside walls. A GFCI detects current leaking to ground, usually from water contact, which can cause electric shock.
| AFCI | GFCI | |
| Protects against | Electrical fires from arcing wires | Electric shock from ground faults |
| Detects | Irregular arcing patterns in the circuit | Current imbalance between hot and neutral wires |
| Common locations | Bedrooms, living rooms, family rooms | Kitchens, bathrooms, outdoor outlets, garages |
| Response speed | Reacts to arc patterns over time | Reacts almost instantly to leakage |
| Found as | Breaker in the panel | Breaker in the panel or built into the outlet itself |
Some circuits, particularly in kitchens and bathrooms, require both types of protection under current electrical code. A dual-function AFCI/GFCI breaker exists specifically for these situations, combining both protections in a single device.
Types of Electrical Panels
Not every panel in a home serves the same purpose. Beyond the main panel, several other panel types exist to expand capacity, manage backup power, or add monitoring capability.
What Is an Electrical Subpanel?
A subpanel is a smaller panel connected to and fed by the main panel, used to extend circuits to an area the main panel doesn’t reach or doesn’t have room for. It’s common in additions, detached garages, workshops, or basement suites with separate living spaces. A subpanel has its own set of breakers and, in many cases, its own main disconnect switch, but the overall amperage still draws from the main panel’s total capacity — it doesn’t add new power to the house, it just distributes existing capacity more conveniently.
Comparison Table by Panel Types
| Type | Function | Best For |
| Main panel | Primary distribution point for the entire home; connects directly to the utility meter | Every home — this is the core panel |
| Subpanel | Extends circuits to a specific area, fed from the main panel | Additions, garages, workshops, basement suites |
| Transfer switch | Switches the home between utility power and a backup generator | Homes in areas with frequent outages |
| Smart panel | Monitors and manages electrical loads in real time, often circuit by circuit | Homes wanting energy monitoring or EV/solar load balancing |
| Single-phase panel | Standard panel design supplying 120/240V power | Nearly all residential homes |
| Three-phase panel | Panel designed for higher, more balanced power delivery | Commercial buildings, some large residential properties |
Electrical Panel Sizes and Amperage
Panel size means the maximum amperage it can safely deliver, not how many breakers it holds. The right size depends on home size, major appliances, and total expected load.
60A, 100A, 150A, 200A, 400A, What Each Supports
| Amperage | Typical Use |
| 60 amps | Older homes; outdated today and often an insurance concern |
| 100 amps | Small to mid-size homes; tight if adding EVs or heat pumps |
| 150 amps | Mid-size homes running multiple appliances at once |
| 200 amps | Standard for modern homes; supports EV chargers and heat pumps |
| 400 amps | Large homes or heavy power needs, often split across two panels |
How Many Circuits Fit in Each Panel Size
| Panel Size | Approximate Breaker Slots |
| 100 amps | 20–24 slots |
| 150 amps | 24–30 slots |
| 200 amps | 30–42 slots |
| 400 amps | 42+ slots (often two panels) |
Tandem breakers can fit two circuits into one slot on panels rated for them. A panel can run out of slots before it runs out of amperage, in that case, a subpanel is often simpler than a full replacement.
How Electricians Calculate the Amperage You Need
Electricians run a load calculation rather than guessing. It typically factors in:
- Base wattage for square footage
- Fixed appliances like the range, dryer, and water heater
- HVAC load (heating or cooling, whichever draws more)
- Special loads like EV chargers or hot tubs
- A demand factor, since not all circuits max out at once
The total is divided by voltage to get the minimum amperage needed, then rounded up to the next standard panel size. This is why two similar-sized homes can need different panels. An all-electric home needs more capacity than one with gas heat and a gas range.
Where Is the Electrical Panel Located?
Electrical panels are placed in accessible but out-of-the-way areas, away from main household activity. Common locations include:
- Basement: along an exterior wall, near where the service line enters
- Garage: on the wall shared with the house
- Utility closet or pantry: in homes without a basement or garage
- Hallway: usually one leading to the garage or outside, not the main entrance
- Outdoors: mostly in older homes or where the panel replaced a fuse box
A good way to locate it if you’re unsure: find the service line where it enters the house (near the electric meter outside), and check the interior wall directly behind or near that point. In apartments, the panel is often just inside the unit, near the entrance or in a bedroom closet.
The panel directory is the chart inside the panel door listing what each breaker controls. Clear labels save time during an outage and help anyone working on the system later.
Mapping an unlabeled panel:
- Turn on every light and plug something into each outlet.
- Switch off one breaker at a time and check what loses power.
- Note the affected rooms or devices.
- Turn it back on and repeat for the next breaker.
- Write clear labels next to each breaker.
Use specific, location-based labels like “upstairs west bedroom” instead of names like “Sarah’s room” future owners or electricians won’t know what that means. Label single-appliance circuits by the appliance itself, like “dishwasher” or “AC unit.”
Example directory:
| Breaker | Amperage | Circuit |
| 1 | 20A | Kitchen outlets |
| 2 | 15A | Living room lights |
| 3 | 30A | Electric dryer |
| 4 | 20A | Garage outlets |
Amperage also hints at what a breaker controls, 15A usually means lighting, 20A points to kitchen or laundry outlets, and 30A or higher signals a major appliance.
Electrical Panel Lifespan
Most electrical panels last 25 to 40 years with normal use. Some well-maintained panels reach 50 years, though components inside may need attention long before the panel itself fails.
Average lifespan by type:
| Panel Type | Typical Lifespan |
| Standard breaker panel | 25–40 years |
| Fuse box | Often past useful life if still in service; largely discontinued since the 1960s–70s |
| Panels from discontinued brands (Federal Pacific, Zinsco) | Risk of failure regardless of age; replacement recommended over lifespan estimates |
Factors that shorten lifespan:
- Humidity and moisture: accelerates corrosion on breakers, wiring, and the panel frame, especially in basements or coastal climates
- Overloading: running near or above rated capacity for extended periods wears down breakers faster than normal use
- DIY tampering: unlicensed work, incorrect breaker sizing, or bypassing safety features can damage components and void manufacturer ratings
- Dust and debris: buildup inside the panel over time can interfere with connections and breaker function
- Loose connections: often from age or vibration, these generate heat and accelerate wear on surrounding components
When to Replace or Upgrade Your Electrical Panel
Before starting a major renovation or adding new electrical loads, professional electrical services can help determine whether your existing panel can safely handle the additional demand.
Urgent Call an Electrician Today
- A burning smell near the panel is a strong sign of overheating insulation or wiring
- Panel hot to the touch: the cover should always feel cool; heat means something inside is under stress
- Visible scorch marks or melting indicates the panel has already experienced overheating
- Sparking or buzzing sounds from the panel
If any of these happen, shut off the main breaker if it’s safe to do so, and call an electrician immediately. Don’t wait for a scheduled appointment.
Soon Schedule an Inspection
- Breakers that trip frequently, even without an obvious overload
- Flickering or dimming lights, especially when appliances turn on
- No empty slots left for new circuits
- Corrosion or rust on the panel door or frame
These aren’t emergencies, but they’re signs the panel is under strain or aging out. An inspection within the next few weeks is reasonable.
Planned Budget for an Upgrade
- Adding an EV charger, which typically needs a dedicated 40–60 amp circuit
- Switching to a heat pump, which draws more power than a gas furnace or older AC unit
- Home addition or renovation that adds new circuits
- Installing solar panels, which may require a panel rated for the added capacity
These upgrades aren’t urgent on their own, but they’re worth planning for before starting the project, since finding out mid-installation that the panel can’t support the new load causes delays and added cost.
Electrical Panel Cost
Cost depends mostly on scope; a simple panel swap costs far less than a full service upgrade involving the meter and utility.
| Job | Typical Cost (2026) |
| 100A panel replacement (no service change) | $1,200–$2,500 |
| 100A to 200A upgrade (panel only) | $1,500–$4,000 |
| 100A to 200A upgrade (with utility work) | $3,000–$6,000 |
| 200A panel replacement (no service change) | $1,500–$3,000 |
| 400A service upgrade | $4,000–$8,500 |
| Subpanel installation | $500–$1,200 |
| Permit and inspection | $150–$400 |
What drives cost up:
- Full service upgrade vs. simple panel swap
- Utility coordination for disconnect/reconnect
- Hard-to-access panel location
- Regional labor rates ($65–$150+/hour)
- Old service wiring that needs replacing too
Panel Upgrade Tax Credits and Rebates
The federal 25C tax credit for panel upgrades expired December 31, 2025, and doesn’t apply to 2026 projects. Even when active, it only covered a panel upgrade paired with another qualifying improvement, like a heat pump, and required at least 200-amp capacity — a standalone panel swap never qualified.
For 2026, some income-qualified households may still access state-administered Home Energy Rebates, and certain utilities offer their own electrification rebates. Check locally before assuming no incentive applies, and confirm eligibility with a tax professional.
Electrical Panel Maintenance
Panel maintenance is simple but easy to skip. A few consistent habits prevent most avoidable problems.
- Keep the cover on and closed protects against dust, moisture, and accidental contact
- Professional inspection every 3 years an electrician checks connections, tests breakers, and runs a thermal scan to catch hidden hot spots
- Feel the panel occasionally the cover should always be cool; warmth means something inside needs attention
- Watch for corrosion surface rust on the door can be sanded and repainted, but rust near breakers or wiring needs an electrician
- Avoid DIY work inside the panel beyond resetting a tripped breaker, internal work should stay with a licensed electrician
Skipping these doesn’t cause immediate failure, but it’s usually how minor issues turn into bigger repairs later.
Electrical Panel Installation
Home improvement company can also help coordinate electrical panel upgrades as part of larger renovation projects, especially when a remodel, home addition, EV charger, heat pump, or new electrical circuits increase the home’s power requirements. .
What the process typically involves:
- Load calculation to confirm the right panel size
- Pulling a permit with the local jurisdiction
- Scheduling a power shutoff (often coordinated with the utility for service upgrades)
- Removing the old panel and mounting the new one
- Connecting the main service wires, bus bars, and breakers
- Testing every circuit before restoring power
- A final inspection by the local building or electrical authority
Do You Need a Permit for Panel Work?
Yes, in nearly all jurisdictions, a panel replacement, upgrade, or service change requires a permit. Resetting or swapping a single breaker of the same rating usually doesn’t.
Most electricians handle the permit as part of the job. Rules vary by city and province or state, so check with the local building department to confirm. Skipping the permit can cause problems later, especially during a home sale or insurance claim.
Summary
An electrical panel splits power from the utility meter into breaker-protected circuits for the whole home. Most homes run on 100 to 200 amps, with 200 becoming standard for EVs, heat pumps, and solar. Panels last 25 to 40 years, but heat, corrosion, frequent trips, or a recalled brand like Federal Pacific or Zinsco call for earlier replacement. Costs range from about $1,200 for a simple swap to $8,000+ for a full service upgrade, and all panel work needs a licensed electrician and a permit.
